Synthesis and characterization of new graft copolymers based on ozonized polyethylene: Comparative approach between mass and solution grafting

Mostapha  KARAOUI; Samira KHARCHOUF; Houda El  YAKOUBI; Kaouthar BOUMANE; Mohammed ASSOUAG

doi:10.55713/jmmm.v36i3.2449

Authors

Mostapha KARAOUI Team of Innovative Materials and Mechanical Manufacturing Processes, ENSAM, Universi-ty Moulay Ismail, B.P. 15290, Al Mansour, Meknes, Morocco
Samira KHARCHOUF Team of Innovative Materials and Mechanical Manufacturing Processes, ENSAM, Universi-ty Moulay Ismail, B.P. 15290, Al Mansour, Meknes, Morocco
Houda El YAKOUBI Team of Innovative Materials and Mechanical Manufacturing Processes, ENSAM, Universi-ty Moulay Ismail, B.P. 15290, Al Mansour, Meknes, Morocco
Kaouthar BOUMANE Team of Innovative Materials and Mechanical Manufacturing Processes, ENSAM, Universi-ty Moulay Ismail, B.P. 15290, Al Mansour, Meknes, Morocco
Mohammed ASSOUAG Team of Innovative Materials and Mechanical Manufacturing Processes, ENSAM, Universi-ty Moulay Ismail, B.P. 15290, Al Mansour, Meknes, Morocco

DOI:

https://doi.org/10.55713/jmmm.v36i3.2449

Keywords:

Graft copolymers, Ozonized polyethylene, Mass grafting, Solution grafting, Monomers

Abstract

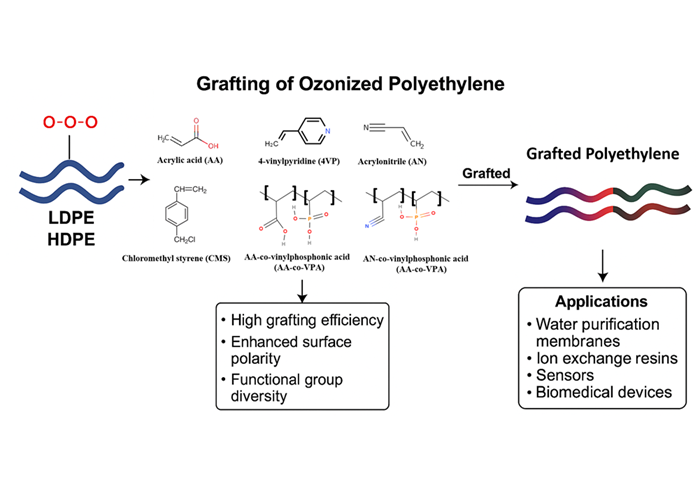

New graft copolymers were developed from low-density polyethylene (LDPE) and high-density polyethylene (HDPE) following an initial ozonation step to introduce reactive functional groups onto the polymer backbone. Among the two polymers, LDPE demonstrated superior susceptibility to ozonation, making it the preferred substrate for subsequent grafting. Grafting was then performed primarily on ozonized LDPE using various functional monomers, including acrylic acid (AA), 4-vinylpyridine (4VP), acrylonitrile (AN), chloromethylstyrene (CMS), as well as copolymers such as AA–vinylphosphonic acid (AA-co-VPA) and AN–vinylphosphonic acid (AN-co-VPA). Grafting was carried out using both solution and melt techniques. The resulting materials were characterized by elemental analysis and Fourier transform infrared (FT-IR) spectroscopy, confirming the incorporation of heteroatoms and the presence of characteristic functional groups. Grafting performed in solution consistently yielded higher efficiencies compared to melt grafting, likely due to improved monomer diffusion and enhanced reactivity of active sites. These graft copolymers exhibit significantly enhanced surface hydrophilicity due to the increased surface polarity and functional group diversity, positioning them as promising candidates for applications in water purification membranes, ion exchange resins, sensors, biomedical devices, and composite materials requiring enhanced interfacial interactions.

Downloads

Download data is not yet available.

References

M. F. Ashby, “Material profiles,” in M. F. Ashby, Ed., Materials and the Environment, Second Edition, Butterworth-Heinemann, Boston, 459-595. 2013.

F. Guzzi, E. Parrotta, S. Zaccone, T. Limongi, G. Cuda, and G. Perozziello, “Materials,” Microfluidics for Cellular Applications, pp. 119–187, 2023.

J. He, Y. Wang, Y. Qian, J. Guo, J. Lu, and W. Yang, “Surface modification of ultra-high-molecular-weight polyethylene and applications: A review,” Polymers (Basel), vol. 16, no. 23, p. 3431, 2024.

D. Patel, J. Wu, P. Chan, S. Upreti, G. Turcotte, and T. Ye, “Surface modification of low density polyethylene films by homogeneous catalytic ozonation,” Chemical Engineering Research and Design, vol. 90, no. 11, pp. 1800–1806, 2012.

J. Hu, F. Y. Lim, and J. Hu, “Ozonation facilitates the aging and mineralization of polyethylene microplastics from water: Behavior, mechanisms, and pathways,” Science of The Total Environment, vol. 866, p. 161290, 2023.

Z. Lu, R. Yin, J. Yao, and C. K. Y. Leung, “Surface modification of polyethylene fiber by ozonation and its influence on the mechanical properties of Strain-Hardening Cementitious Composites,” Compos B Eng, vol. 177, p. 107446, 2019.

E. Mastan, “Surface modification of polyethylene film by catalytic ozonation,” Materials Science, Chemistry, 2013.

T. Fargere, M. Abdennadher, M. Delmas, and B. Boutevin, “Synthesis of graft polymers from an ozonized ethylene vinyl acetate copolymer (EVA). I. Study of the radical polymerization of styrene initiated by an ozonized EVA,” Journal of Polymer Science, Part A: Polymer Chemistry, vol. 32, no. 7, pp. 1377–1384, 1994.

D. Cunliffe, J. Lockley, J. R. Ebdon, S. Rimmer, and B. J. Tabner, “Initiation of radical polymerization with radicals produced from thermolyzed alkene ozonates,” Designed Monomers and Polymers, vol. 5, no. 2–3, pp. 233–243, 2002.

M. Á. Vega‐hernández, G. S. Cano-Díaz, E. Vivaldo-Lima, A. Rosas-Aburto, M. G. Hernández-Luna, A. Martinez, J. Palacios-Alquisira, Y. Mohammadi, and A. Penlidis “A review on the synthesis, characterization, and modeling of polymer grafting,” Processes, vol. 9, no. 2, p. 375, 2021.

G.-H. Hu, J.-J. Flat, and M. Lambla, “Free-radical grafting of monomers onto polymers by reactive extrusion: principles and applications,” Reactive Modifiers for Polymers, pp. 1–83, 1997.

J. E. Curry, “Practical aspects of processing of blends,” Polymer Blends and Alloys, pp. 7–45, 1993.

A. Bhattacharya, and B. N. Misra, “Grafting: A versatile means to modify polymers: Techniques, factors and applications,” Progress in Polymer Science, vol. 29, no. 8, pp. 767–814, 2004.

A. Zouahri, M. Assouag, J. J. Robin, B. Boutevin, A. Elbachiri, and A. Elmidaoui, “Comparative ozonization of LDPE and HDPE and grafting of some monomers to elaborate new ion exchange membranes,” Journal of Applied Polymer Science, vol. 101, no. 6, pp. 4423–4429, 2006.

A. Zouahri, A. Elmidaoui, B. Ameduri, Y. Hervaud, and B. Boutevin, “Synthesis of ion exchange membranes from ozonized high density polyethylene,” European Polymer Journal, vol. 38, no. 11, pp. 2247–2254, 2002.

A. Elmidaoui, T. Sarraf, C. Gavach, and B. Boutevin, “Synthesis and characterization of new ion-exchange membranes,” Journal of Applied Polymer Science, vol. 42, no. 9, pp. 2551–2561, 1991.

A. Elmidaoui, “Nouvelles membranes à perméation ionique pour la récupération des acides minéraux. Analyse électrochimique du transport compétitif des acides et des sels,” Faculté des sciences, Université Mohammed V, Rabat, 1991.

A. A. Kefeli, S. D. Razumovskii, and G. E. Zaikov, "Interaction of polyethylene with ozone," Vysokomolekulyarnye Soedineniya, Seriya A, vol. 13, no. 4, pp. 803–810, 1971.
