Bifunctional cationic modification of modal fabric for sustainable in textile dyeing with spent coffee grounds

Monthon  NAKPATHOM; Rattanaphol MONGKHOLRATTANASIT; Sarute  UMMARTYOTIN; Pisutsaran  CHITICHOTPANYA; Nattaya VUTHIGANOND

doi:10.55713/jmmm.v34i4.2051

Authors

Monthon NAKPATHOM Textile Research Team, Advanced Polymer Technology Research Group, National Metal and Materials Technology Center, National Science and Technology Development Agency, Pathumthani 12120, Thailand
Rattanaphol MONGKHOLRATTANASIT Department of Textile Chemistry Technology, Faculty of Industrial Textiles and Fashion Design, Rajamangala University of Technology Phra Nakhon, Bangkok 10300, Thailand
Sarute UMMARTYOTIN Division of Materials and Textile Technology, Faculty of Science and Technology Thammasat University, Rangsit Center, Pathumthani 12121, Thailand
Pisutsaran CHITICHOTPANYA Division of Materials and Textile Technology, Faculty of Science and Technology Thammasat University, Rangsit Center, Pathumthani 12121, Thailand
Nattaya VUTHIGANOND Division of Materials and Textile Technology, Faculty of Science and Technology Thammasat University, Rangsit Center, Pathumthani 12121, Thailand

DOI:

https://doi.org/10.55713/jmmm.v34i4.2051

Keywords:

Cationization, Bifunctional cationic agent, Dyeing, Modal, Spent coffee grounds

Abstract

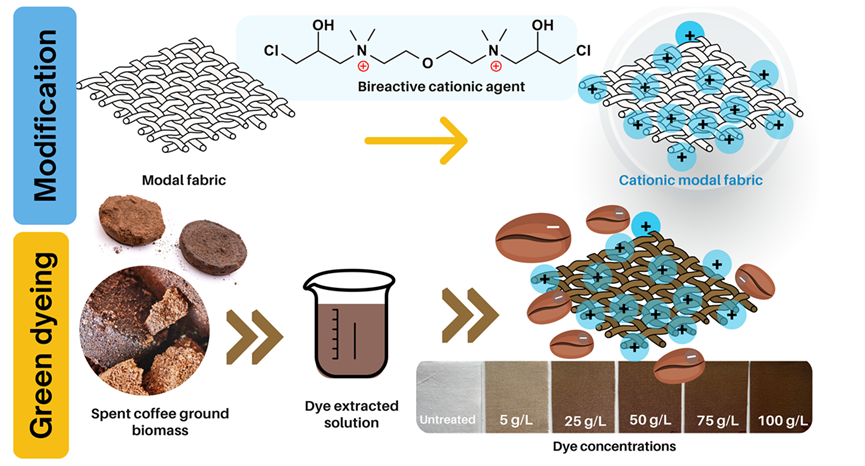

In order to dye cellulose or regenerated cellulose with natural dyes, toxic metal mordants are generally employed. In response to this issue, the novel bifunctional cationic agent was pretreated to modify modal (regenerated cellulose) fabric prior to dyeing to enhance the fiber-dye affinity. The cationization reaction was carried out using a compound containing bicationic sites, N,N'-(oxybis (ethane-2,1-diyl))bis(3-chloro-2-hydroxy-N,N-dimethylpropan-1-aminium. This unique cationic agent is capable of producing nonvolatile amine and has no odor problem. The successful cationic modification was confirmed through FTIR spectroscopy and zeta potential measurement. The cationized process was optimized at a cationic and sodium hydroxide concentration of 90 and 20 g∙L^‒1, respectively, with a duration of 5 h. The modified modal fabric significantly enhanced its dyeability with the extract from spent coffee grounds, resulting in deep brown colors. The cationized sample's color strength was noticeably improved. Cationized samples demonstrated better color fastness to washing than untreated samples. Crock fastness was comparable, except the light fastness at high dye concentrations was slightly lower. By utilizing cationization, it offers a promising and sustainable approach enhancing the dyeing with natural dye for green textile coloration.

Downloads

Download data is not yet available.

References

C. W. Kan, C. K. Y. Lo, and W. S. Man, "Environmentally friendly aspects in coloration," Coloration Technology, vol. 132, pp. 4-8, 2016. DOI: https://doi.org/10.1111/cote.12188

K. Haggag, N. El-Hawary, N. El-Sheemy, H. Mashaly, and H. El-Sayed, "Synchronized dyeing and finishing of natural silk fabrics with mulberry leaves extract," Egyptian Journal of Chemistry, vol. 65, pp. 769-779, 2022.

M. Nakpathom, B. Somboon, N. Narumol, and R. Mongkholrattanasit, "Dyeing of cationized cotton with natural colorant from purple corncob," Journal of Natural Fibers, vol. 15, pp. 668-679, 2018. DOI: https://doi.org/10.1080/15440478.2017.1354742

J. Setthayanond, F. Netzer, K. Seemork, P. Suwanruji, T. Bechtold, T. Pham, and A. P. Manian, "Low-level cationisation of cotton opens a chemical saving route to salt free reactive dyeing," Cellulose, vol. 30, pp. 4697-4711, 2023. DOI: https://doi.org/10.1007/s10570-023-05136-5

S. Acharya, N. Abidi, R. Rajbhandari, and F. Meulewaeter, "Chemical cationization of cotton fabric for improved dye uptake," Cellulose, vol. 21, pp. 4693-4706, 2014. DOI: https://doi.org/10.1007/s10570-014-0457-2

M. J. Farrell, R. B. Ormond, and W. J. Gabler, "Quantitative analysis of trimethyl amine in cotton fabrics cationized with 3-chloro-2-hydroxypropyltrimethylammoniumchloride," Cellulose, vol. 22, pp. 3435-3439, 2015. DOI: https://doi.org/10.1007/s10570-015-0692-1

S. Pruś, P. Kulpiński, E. Matyjas-Zgondek, and K. Wojciechowski, "Eco-friendly dyeing of cationised cotton with reactive dyes: mechanism of bonding reactive dyes with CHPTAC cationised cellulose," Cellulose, vol. 29, pp. 4167-4182, 2022. DOI: https://doi.org/10.1007/s10570-022-04521-w

A. Rehman, H. A. Abid, D. Hassan, and M. I. Siyal, "Modification of viscose rayon fabric with 3-chloro-2-hydroxypropyl trimethyl ammonium chloride (CHPTAC) to enable its sustainable dyeing with acid dyes," Fibers and Polymers, vol. 24, pp. 2315-2323, 2023. DOI: https://doi.org/10.1007/s12221-023-00237-1

Cottonworks. (2021, 1/29/2024). Advancements in Cationic Cotton Technologies. Available: https://www.cottonworks.com/w-content/ uploads/2021/02/Cationic-Cotton-Webinar-Presentation.pdf

S. K. Karmee, "A spent coffee grounds based biorefinery for the production of biofuels, biopolymers, antioxidants and bio-composites," Waste Management, vol. 72, pp. 240-254, 2018. DOI: https://doi.org/10.1016/j.wasman.2017.10.042

M. S. M. Ruiz, M. Reiser, and M. Kranert, "Composting and methane emissions of coffee by-products," Atmosphere, vol. 12, 2021. DOI: https://doi.org/10.3390/atmos12091153

M. N. Araújo, A. Q. P. L. Azevedo, F. Hamerski, F. A. P. Voll, and M. L. Corazza, "Enhanced extraction of spent coffee grounds oil using high-pressure CO2 plus ethanol solvents," Industrial Crops and Products, vol. 141, 2019. DOI: https://doi.org/10.1016/j.indcrop.2019.111723

F. Battista, E. M. Barampouti, S. Mai, D. Bolzonella, D. Malamis, K. Moustakas, and M. Loizidou, "Added-value molecules recovery and biofuels production from spent coffee grounds," Renewable and Sustainable Energy Reviews, vol. 131, p. 110007, 2020. DOI: https://doi.org/10.1016/j.rser.2020.110007

A. L. V. Cubas, M. M. Machado, R. T. Bianchet, K. A. da Costa Hermann, J. A. Bork, N. A. Debacher, E. F. Lins, M. Maraschin, D. S. Coelho, and E. H. S. Moecke, "Oil extraction from spent coffee grounds assisted by non-thermal plasma," Separation and Purification Technology, vol. 250, p. 117171, 2020. DOI: https://doi.org/10.1016/j.seppur.2020.117171

K. Ramírez, K. V. Pineda-Hidalgo, and J. J. Rochín-Medina, "Fermentation of spent coffee grounds by Bacillus clausii induces release of potentially bioactive peptides," LWT, vol. 138, 2021. DOI: https://doi.org/10.1016/j.lwt.2020.110685

E. Ribeiro, T. D. S. Rocha, and S. H. Prudencio, "Potential of green and roasted coffee beans and spent coffee grounds to provide bioactive peptides," Food Chemistry, vol. 348, 2021. DOI: https://doi.org/10.1016/j.foodchem.2021.129061

E. Koh and K. H. Hong, "Preparation and properties of cotton fabrics finished with spent coffee extract," Cellulose, vol. 24, pp. 5225-5232, 2017. DOI: https://doi.org/10.1007/s10570-017-1466-8

E. Koh and K. H. Hong, "Preparation and properties of wool fabrics dyed with spent coffee ground extract," Textile Research Journal, vol. 89, pp. 13-19, 2019. DOI: https://doi.org/10.1177/0040517517736469

J. Bae and K. H. Hong, "Optimized dyeing process for enhancing the functionalities of spent coffee dyed wool fabrics using a facile extraction process," Polymers, vol. 11, 2019. DOI: https://doi.org/10.3390/polym11040574

W. Xia, Z. Li, Y. Tang, and Q. Li, "Sustainable recycling of café waste as natural bio resource and its value adding applications in green and effective dyeing/bio finishing of textile," Separation and Purification Technology, vol. 309, p. 123091, 2023. DOI: https://doi.org/10.1016/j.seppur.2022.123091

R. Campos-Vega, G. Loarca-Piña, H. A. Vergara-Castañeda, and B. Dave Oomah, "Spent coffee grounds: A review on current research and future prospects," Trends in Food Science and Technology, vol. 45, pp. 24-36, 2015. DOI: https://doi.org/10.1016/j.tifs.2015.04.012

D. Gniechwitz, N. Reichardt, J. Ralph, M. Blaut, H. Steinhart, and M. Bunzel, "Isolation and characterisation of a coffee melanoidin fraction," Journal of the Science of Food and Agriculture, vol. 88, pp. 2153-2160, 2008. DOI: https://doi.org/10.1002/jsfa.3327

I. A. Ludwig, L. Sanchez, B. Caemmerer, L. W. Kroh, M. P. De Peña, and C. Cid, "Extraction of coffee antioxidants: Impact of brewing time and method," Food Research International, vol. 48, pp. 57-64, 2012. DOI: https://doi.org/10.1016/j.foodres.2012.02.023

C. Bartel, M. Mesias, and F. J. Morales, "Investigation on the extractability of melanoidins in portioned espresso coffee," Food Research International, vol. 67, pp. 356-365, 2015. DOI: https://doi.org/10.1016/j.foodres.2014.11.053

H. Y. Wang, H. Qian, and W. R. Yao, "Melanoidins produced by the Maillard reaction: Structure and biological activity," Food Chemistry, vol. 128, pp. 573-584, 2011. DOI: https://doi.org/10.1016/j.foodchem.2011.03.075

E. K. Bekedam, H. A. Schols, M. A. J. S. Van Boekel, and G. Smit, "High molecular weight melanoidins from coffee brew," Journal of Agricultural and Food Chemistry, vol. 54, pp. 7658-7666, 2006. DOI: https://doi.org/10.1021/jf0615449

E. K. Bekedam, M. P. F. C. De Laat, H. A. Schols, M. A. J. S. Van Boekel, and G. Smit, "Arabinogalactan proteins are incorporated in negatively charged coffee brew melanoidins," Journal of Agricultural and Food Chemistry, vol. 55, pp. 761-768, 2007. DOI: https://doi.org/10.1021/jf063010d

L. Kučera, R. Papoušek, O. Kurka, P. Barták, and P. Bednář, "Study of composition of espresso coffee prepared from various roast degrees of Coffea arabica L. coffee beans," Food Chemistry, vol. 199, pp. 727-735, 2016. DOI: https://doi.org/10.1016/j.foodchem.2015.12.080

C. L. Chong, S. Q. Li, and K. W. Yeung, "An objective method for the assessment of levelness of dyed materials," Journal of the Society of Dyers and Colourists, vol. 108, pp. 528-530, 1992. DOI: https://doi.org/10.1111/j.1478-4408.1992.tb01405.x

C. W. Kan, "Colour fading effect of indigo-dyed cotton denim fabric by CO2 laser," Fibers and Polymers, vol. 15, pp. 426-429, 2014. DOI: https://doi.org/10.1007/s12221-014-0426-2

C. Chung, M. Lee, and E. K. Choe, "Characterization of cotton fabric scouring by FT-IR ATR spectroscopy," Carbohydrate Polymers, vol. 58, pp. 417-420, 2004. DOI: https://doi.org/10.1016/j.carbpol.2004.08.005

N. Arivithamani, and V. R. G. Dev, "Cationization of cotton for industrial scale salt-free reactive dyeing of garments," Clean Technologies and Environmental Policy, vol. 19, pp. 2317-2326, 2017. DOI: https://doi.org/10.1007/s10098-017-1425-y

J. Feng, C. C. Berton-Carabin, S. Guyot, A. Gacel, V. Fogliano, and K. Schroën, "Coffee melanoidins as emulsion stabilizers," Food Hydrocolloids, vol. 139, p. 108522, 2023. DOI: https://doi.org/10.1016/j.foodhyd.2023.108522

J. Correia, F. R. Oliveira, R. de Cássia Siqueira Curto Valle, and J. A. B. Valle, "Preparation of cationic cotton through reaction with different polyelectrolytes," Cellulose, vol. 28, pp. 11679-11700, 2021. DOI: https://doi.org/10.1007/s10570-021-04260-4
